DIABLO® D12120N DIA D12120N

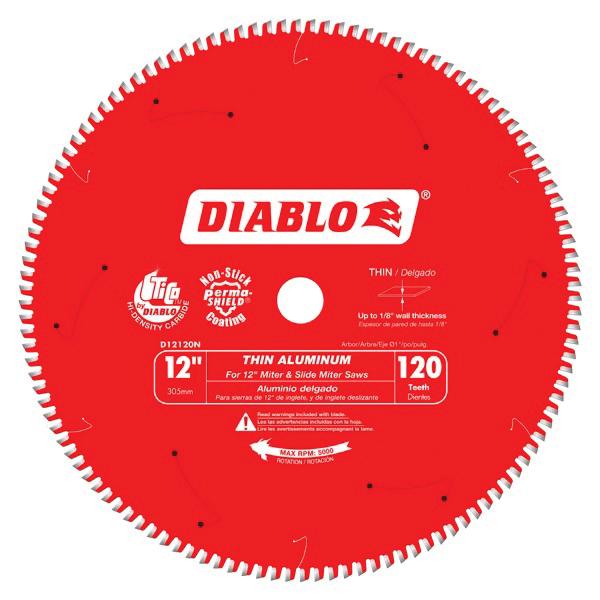

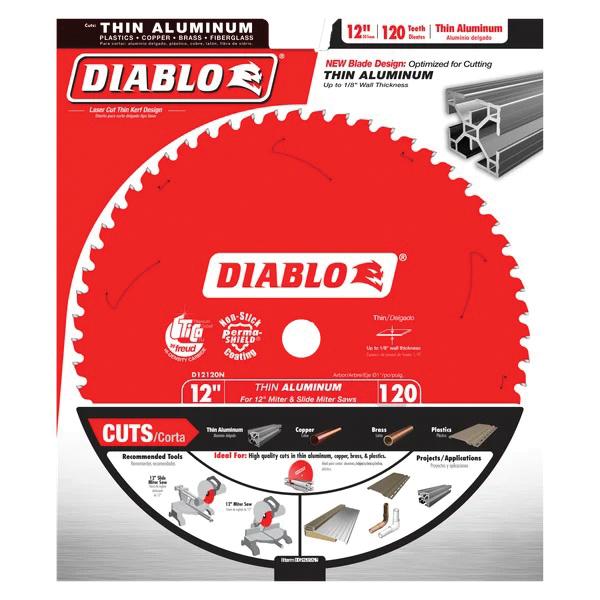

D12120N Saw Blade, 12" Dia, TCG Teeth, 120-Teeth, -5° Hook, 1" Arbor, 5,000 rpm Max Speed, Aluminum Blade

  • Part#: DIA D12120N
  • Manufacturer: Freud America, Inc
  • MPN: D12120N
  • Brand Name: DIABLO®
  • Availability: loading
  • Package Qty: 1

DIABLO® next generation aluminum saw blades are optimized for cutting thin (up to 1/8 in), medium (3/32 to 1/4 in) and thick (3/16 to 7/16 in ) aluminum metals. Featuring the new, specially formulated DIABLO® TiCo™ super-density micro-grain carbide, these radical blades withstand impact, reduce wear, provide clog-free cuts and last longer than standard carbide in metal cutting applications. The specially formulated metal cutting carbide teeth feature a triple chip grind (TCG) tooth design for clean, burr-free finishes, virtually eliminating any type of rework. Tri-Metal shock-resistant brazing allows these aluminum blades to slice through metal materials while withstanding extreme impact for maximum durability. DIABLO® aluminum saw blade Series is ideal for corded and cordless saws when on the job cutting non-ferrous metals such as aluminum extrusions, copper pipe, brass plate and more.

Diablo's next generation Saw Blades for Aluminum are optimized for cutting thin (up to 1/8”), medium (3/32”-1/4”) and thick (3/16”-7/16”) aluminum metals. Featuring the new, specially formulated Diablo TiCo™ Super-Density Micro-Grain Carbide, these radical blades withstand impact, reduce wear, provide clog free cuts and last longer than standard carbide in metal cutting applications. The specially formulated metal cutting carbide teeth feature a Triple Chip Grind (TCG) Tooth Design for clean, burr-free finishes, virtually eliminating any type of rework. Tri-Metal Shock Resistant Brazing allows these Aluminum blades to slice through metal materials while withstanding extreme impact for maximum durability. Diablo's Aluminum saw blade series is ideal for corded and cordless saws when on-the-job cutting non-ferrous metals such as aluminum extrusions, copper pipe, brass plate, etc.

Arbor Size      :      1"
Diameter      :      12"
Hook Angle      :      -5°
Kerf      :      0.091"
Maximum RPM      :      5,000
Number of Teeth      :      120
  • TiCo™ super-density micro-grain carbide for extreme cutting life and clog-free cuts
  • Tri-Metal shock-resistant brazing for extreme impact and maximum durability
  • Triple chip grind (TCG) tooth geometry for maximum life, speed and durability, giving clean, burr-free cuts
  • Laser cut stabilizer vents for trapping noise and reducing vibration for accuracy and durability
  • Perma-SHIELD® non-stick-coating protects from heat, gumming and corrosion
