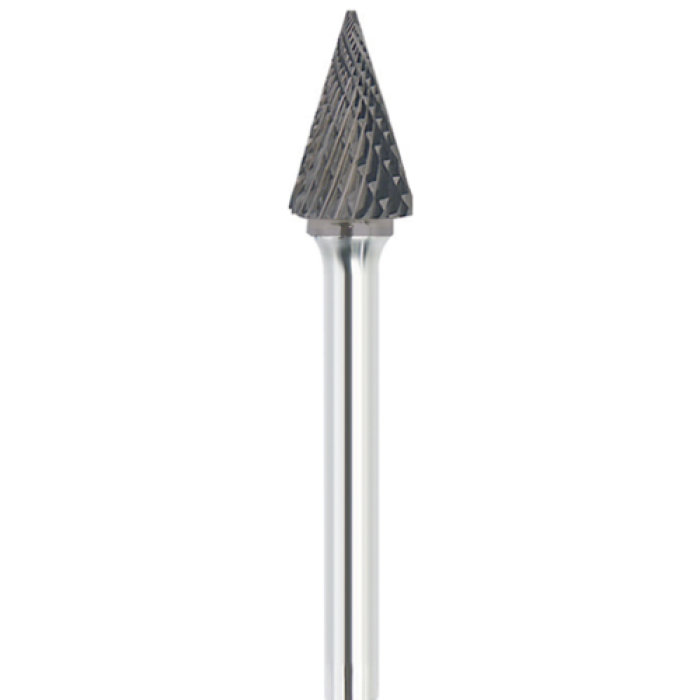

SM-5DC Carbide Burr, 28°, Flat End, Double Cut, Cone, 1/4" Dia Shank, 1/2" Dia Head, 2-1/4" L

  • Part#: HTC SM-5DC
  • Manufacturer: HTC Tool-Cutter Manufacturing
  • MPN: SM-5DC
  • Brand Name: HTC
  • Availability: loading
  • Package Qty: 1

Double Cut Carbide Burrs are often used on ferrous and non ferrous metals, aluminium, soft steel and also for plastics and wood. They have more cutting edges and will remove material faster. Double cut will leave a smoother finish than single cut due to producing smaller chips. Use for medium-light stock removal, deburring, finishing and cleaning. A double cut carbide burr is the most popular cut and an excellent choice for most applications.

Cut Type      :      Double
Head Diameter      :      1/2"
Head Shape      :      28° Pointed Cone
Length of Cut      :      7/8"
Material      :      Carbide
Overall Length      :      2-1/4"
Shank Diameter      :      1/4"
  • Double cut design for efficient material removal
  • Pointed cone shape allows for detailed work
  • Constructed from high-quality carbide for durability
  • pdf Catalog https://assets.unilogcorp.com/267/ITEM/DOC/HTC_SA_1DC_Catalog.pdf
  • pdf Line Drawing https://assets.unilogcorp.com/267/ITEM/DOC/HTC_SM_3DC_Line_Drawing.pdf
