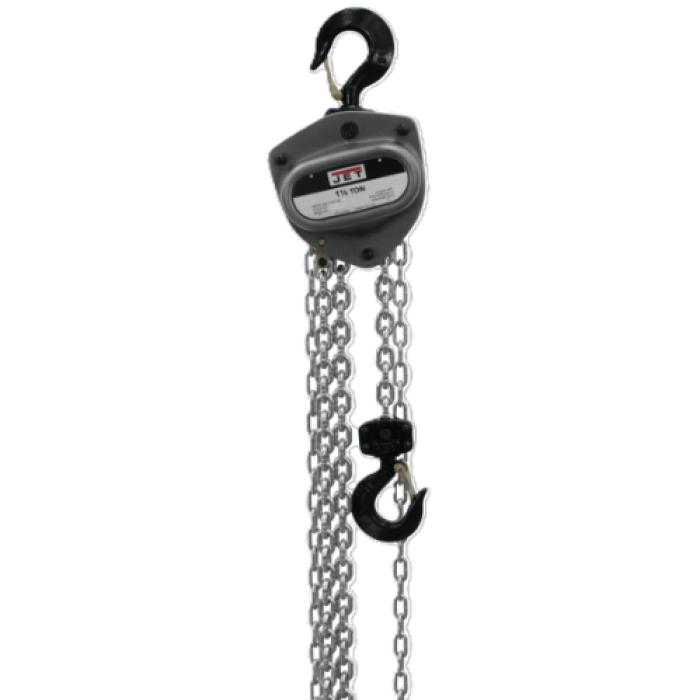

JET® JT9-201115 JET 201115

JET L-100 Series hand chain hoist is designed with all steel construction and ensures integrates safety, durability and innovation enabling it to operate in the most demanding industrial environments. Safety features such as the slip clutch-style overload protection prevents the hoist from lifting damaging loads beyond its rated capacity. The JET exclusive innovation showcased in the patented fused brake system reduces maintenance costs and limits downtime. JET is so confident in the durability of the fused brake design we back it with an industry leading lifetime replacement warranty. Regardless of how harsh the environment, the JET L-100 Series hand chain hoist is engineered to perform.

JET® Hand Chain Hoist With Overload Protection, L-100 Series, 1.5 ton Load, 15 ft Hoist Lift, 77 lb Pull to Lift, Cable/Chain Diameter: 7.1 mm, Cable/Chain Material: Steel, 1-5/16 in Hook Opening, Alloy Steel Hook, 13-3/4 in Minimum Between Hooks, Hook Hoist Mounting, Steel Housing, 7-3/16 in Housing Length, 6-11/16 in Housing Width

• Double sealed ball bearings support the load sheave to increase efficiency and promote smooth operation
• Grade 100, corrosion-resistant plated load chain is a smaller, more compact link that is 20% stronger than grade 80 load chain
• Heat-treated load plates
• Industrial-rated alloy steel hooks rotate 360 deg for easy rigging and slowly stretch to indicate an overload situation
• Intended for the harshest environments, the heat-treated load plates and case hardened corrosive-resistant internal parts extend the life of the hoist
• Secured with Allen screws and lock nuts, the cast steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
• The lightweight design and smaller body are ideal for confined areas and low headroom applications
• Weston-style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security

• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/JET_101615_Instruction_Installation_Manual.pdf
