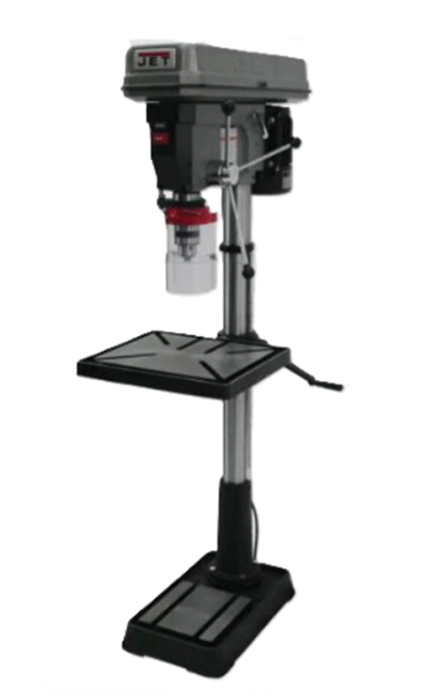

Jet® 20" Floor Drill Press 115/230V 1PH (JET 354170)

  • Part#: JET 354170
  • Manufacturer: JPW Industries
  • MPN: JT9-354170
  • Brand Name: JET®
  • Availability: loading
  • Package Qty: 0

Accuracy, stability and versatility are the benchmark features of the JET 20 in drill presses. This high quality line of JET drill presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry leading 2 year warranty.

JET® Floor Drill Press, Tool, 3/4 in, 1 in Capacity, 20 in Swing, MT-3 Spindle Taper, 4-5/8 in Spindle Travel, 1/2 in Table Slot, 3-3/8 in Column Diameter, 45 deg Tilt Angle, Maximum Spidle to Base Size: 46-3/4 in, 13 in L x 8-1/2 in W Table Work Surface, 29-1/8 in Spindle to Table, 115/230 V, 18/9 A, 60 Hz, 1-1/2 hp, 150 to 4200 rpm, 12 Speed Setting, 33-1/2 in Overall Length, 18-1/2 in Overall Width, 67 in Overall Depth

Additional Information      :      10 in Column to Spindle Distance, 18-1/2 in L x 16 in W Table, 21-1/2 in Table Travel
Amperage Rating      :      18/9 A
Capacity      :      3/4 in, 1 in
Column Diameter      :      3-3/8 in
Frequency Rating      :      60 Hz
HP Rating      :      1-1/2 hp
Maximum Spidle to Base Size      :      46-3/4 in
Overall Depth      :      67 in
Overall Length      :      33-1/2 in
Overall Width      :      18-1/2 in
Speed Rating      :      150 to 4200 rpm
Speed Setting      :      12
Spindle Taper      :      MT-3
Spindle Travel Size      :      4-5/8 in
Spindle to Table Size      :      29-1/8 in
Swing Size      :      20 in
Table Slot Size      :      1/2 in
Table Work Surface Size      :      13 in L x 8-1/2 in W
Tilt Angle      :      45 deg
Tool/Kit      :      Tool
Voltage Rating      :      115/230 V
  • 1/2 in Dia external depth stop with three nut locking feature for quick adjustment
  • Adjustable tension spindle return spring
  • Drill chuck and key included
  • Hinged metal belt and pulley cover
  • On/off switch located on front of drill press head
  • Quick adjustment motor mount for rapid changing of spindle speeds
  • Telescoping safety spindle guard
