NBIS Approved Vendor 10158FHPWGTEK3Z1

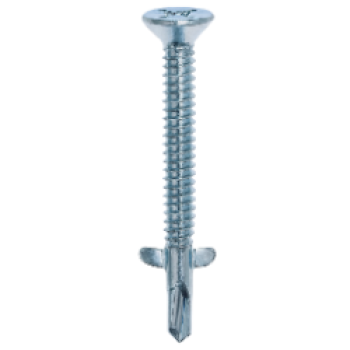

#10 x 1-5/8" Flat Head Phillips W/Wing #3 Point Zinc
- Part#: 10158FHPWGTEK3Z1
- Manufacturer: NBIS Approved Vendor
- Brand Name: NBIS Approved Vendor
-
Availability:
- Branch Availability
- Package Qty: 0
-
Price:
Flat Head Phillips Self-Drilling Screws (or TEK screw) feature cutting wings that drill a slightly larger hole in wood, allowing for up to 8.5% expansion. The wings break off when they contact metal, enabling the screw to tap the remainder of the hole without damage to the material.
| Diameter/Thread | : | #10 |
| Finish | : | Zinc |
| Flange Type | : | Undercut/Winged |
| Head Type | : | Flat Head Phillips |
| Length | : | 1-5/8" |
| Material | : | Steel |
| Point Size | : | 3 |
- Steel is often used in applications where strength is the primary consideration
- Zinc plating resists corrosion and has a reflective appearance
- Flat head has an 82-degree cone-shaped bearing surface for use in countersunk holes and a flat top that fits flush with the mated surface
- Phillips drive has an x-shaped slot that accepts a Phillips driver and is designed to prevent over-tightening
- Wings above the drill point enable secure fastening of thick wood to metal
