Simpson Strong-Tie® ABA66Z SIM ABA66Z
  1. pin-int

Simpson Strong-Tie® ABA66Z SIM ABA66Z

Simpson Strong-Tie® ABA66Z Adjustable Post Base, 6 in Post/Column, 14 ga Gauge, Zinc, ZMAX®-Coated

  • Part#: SIM ABA66Z
  • Manufacturer: Simpson Strong-Tie
  • MPN: ABA66Z
  • Brand Name: Simpson Strong-Tie®
  • Availability: loading
  • Package Qty: 1

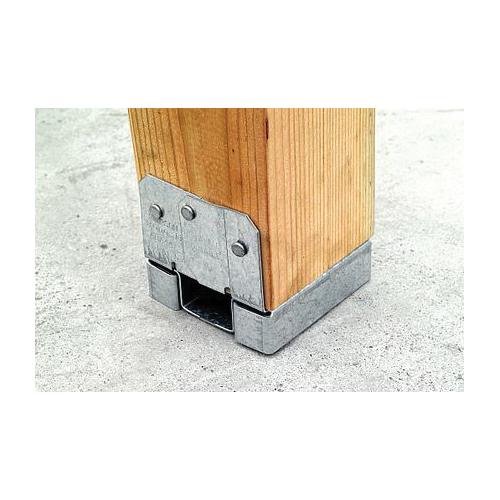

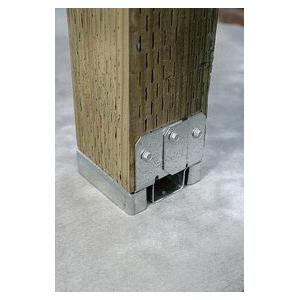

The ABA is designed to attach wooden posts to existing concrete. The built-in 1 in standoff of this adjustable post base helps to prevent rot at the end-of the post. The ABA has a slotted anchor hole in the base for adjustability and attaches to the post with nails or Strong-Drive® SD connector screws. This versatile post base makes a cost-effective option for securing a post to the foundation.

Simpson Strong-Tie® Adjustable Post Base, Post/Column Size: 6 in, 5-1/2 in Overall Width, 3-1/8 in Overall Height, Material Gauge: 14 ga, Nail Fastener, 0.162 x 3.5 in Fastener, 850 to 10245 lb Load, Zinc, Finish: ZMAX®-Coated

Fastener Size      :      0.162 x 3.5 in
Fastener Type      :      Nail
Finish      :      ZMAX®-Coated
Load Capacity      :      850 to 10245 lb
Material Gauge      :      14 ga
Material      :      Zinc
Overall Height      :      3-1/8 in
Overall Width      :      5-1/2 in
Post/Column Size      :      6 in
  • The slot in the base enables flexibility around the anchor bolt, making precise post placement easier
  • 1 in stand-off design meets code requirements for structural posts installed in basements or exposed to weather or water splash
  • Increased uplift loads for earthquake or wind loading
  • pdf Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Simpson_Strong_Tie_ABA44Z_Specification_Sheet.pdf
