Simpson Strong-Tie® ETS3710 SIM ETS3710
  1. pin-int

Simpson Strong-Tie® ETS3710 SIM ETS3710

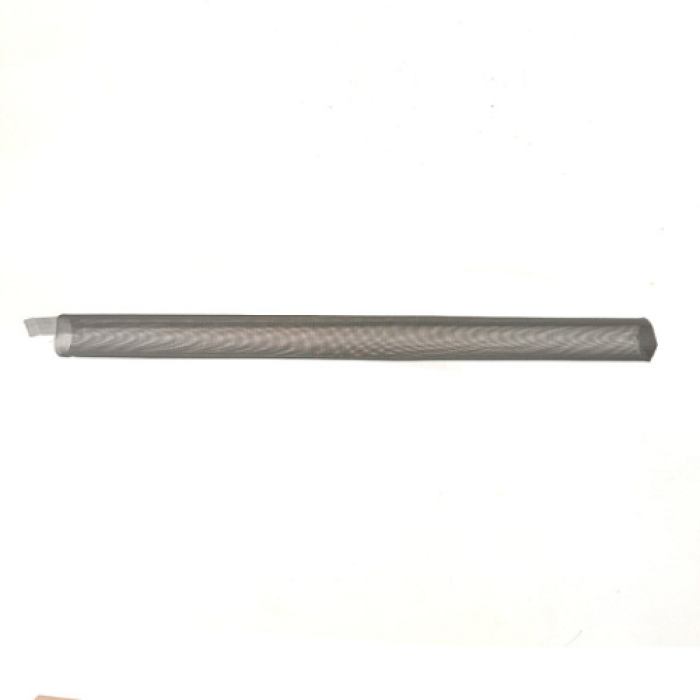

ETS3710 3/8" x 10" Carbon Steel Adhesive Screen Tube for Epoxy

  • Part#: SIM ETS3710
  • Manufacturer: Simpson Strong-Tie
  • MPN: ETS3710
  • Brand Name: Simpson Strong-Tie®
  • Availability: loading
  • Package Qty: 0

Screen tubes are used in hollow base material applications to contain adhesive around the anchor and prevent it from running into voids. Simpson Strong-Tie® screen tubes are specifically designed to work with AT, SET and ET-HP® adhesives in order to precisely control the amount of adhesive that passes through the mesh. This results in thorough coating and bonding of the rod to the screen tube and base material. Order screen tubes based upon rod diameter and adhesive type. The actual outside diameter of the screen tube is larger than the rod diameter.

Actual Length      :      10"
Diameter      :      3/8"
Drill Size      :      9/16"
Material      :      60 Mesh Carbon Steel
Suitable For Use With      :      Hollow CMU, Hollow Brick, Unreinforced Masonry
Usage      :      Adhesive Screen Tube

Screen tubes are for use in hollow CMU, hollow brick and unreinforced masonry applications. Contact Simpson Strong-Tie for information on special-order sizes.
