Simpson Strong-Tie® SD9112R100 SIM SD9112R100

The Strong-Drive® SD Connector screw is specifically designed to replace nails in certain Simpson Strong-Tie® connectors and is the only screw approved for that application. The load-rated SD screw has been tested and approved for use in many popular Simpson Strong-Tie® products. In certain applications screws are easier and more convenient to install than nails and the single fastener load values achieved by the SD screw exceed those of typical 10d common or 16d common nails. In addition, the galvanized coating makes the SD screw ideal for interior and most exterior conditions.

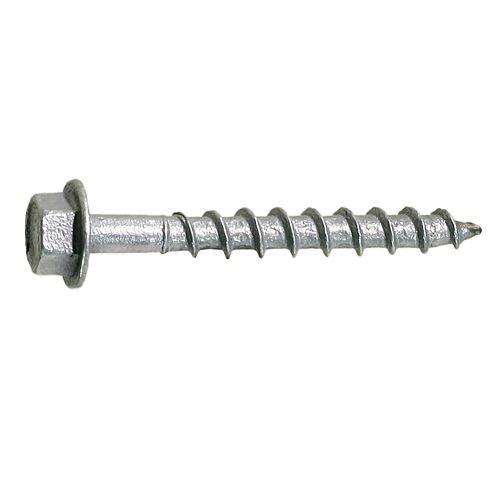

Simpson Strong-Tie® Connector Screw, SD Series, Model: SD9112, #9 Thread, Hex Drive, 1/4 in Drive, Hex Head, 1 in Thread Length, 1-1/2 in Overall Length, Finish: Mechanically Galvanized, Additional Information: Sharp Point

• Specifically designed to replace nails in certain Simpson Strong-Tie® connectors and is the only screw approved for that application
• The single fastener load capacity of the #9 SD screw exceeds the capacity of a 10d common nail, while the single fastener load capacity of the #10 SD screw exceeds that of the 16d common nail
• Tested and approved for use in many of our most popular connectors for both interior and exterior applications

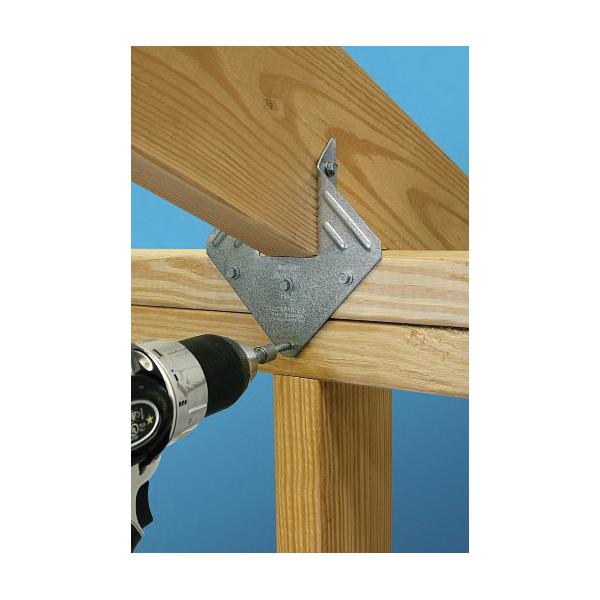

• Ideal for use in connector applications where more control is desired or using a hammer is inconvenient
• 1/4 in hex head with 0.37 in Dia integrated washer is stamped with the Simpson Strong-Tie® # sign and the fastener size for easy identification after installation
• Shank is specifically designed to match the fastener holes in Simpson Strong-Tie® connectors
• Optimized heat-treating for ductility and strength

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Simpson_Strong_Tie_SD9212R100_Catalog.pdf
• Video Link https://youtu.be/2MJ5M7KBxgg
