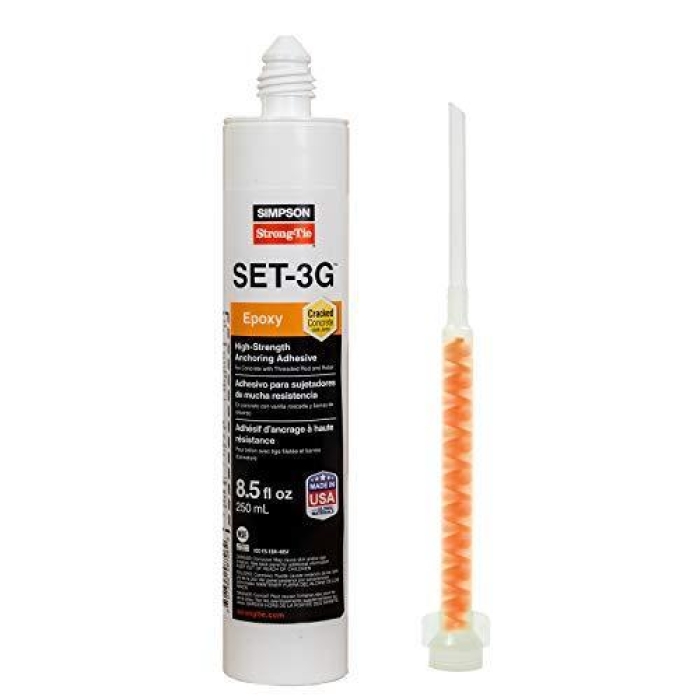

Simpson Strong-Tie® SET3G10 SIM SET3G10

SET-3G™ is the latest innovation in epoxy anchoring adhesives with high design strength and proven performance. SET-3G™ is a 1:1 ratio, two component, anchoring adhesive for concrete (cracked and uncracked). SET-3G™ installs and performs in a variety of environmental conditions and temperature extremes.

Simpson Strong-Tie® High Strength Epoxy Adhesive, Coaxial Cartridge Container, 8.5 oz Container, Gray, Composition: Concrete, -40 to 176 deg F, Mixing Ratio: 1:1, 2 g/L VOC

• Exceptional performance - superior bond strengths permit ductile solutions in high seismic areas
• Design flexibility - improved sustained load performance at elevated temperature
• Jobsite versatility - can be specified for all base material conditions when in service temperatures range from -40 deg F (-40 deg C) to 176 deg F (80 deg C)
• Recognized per ICC ES AC308 for post installed rebar development and splice length design provisions
• Approved for installation with multiple vacuum drill bit systems without further hole cleaning
• Wire brush hole cleaning system for conventional blow-brush-blow cleaning method for anchoring
• With higher bond strengths, ductile solutions can often be achieved with SET-3G™ in high seismic areas
• Low odor formulation
• Manufactured in the USA using global materials
• During the installation of SET-3G™, when the correct installation processes are followed, there is no performance difference between water saturated concrete, water filled holes or submerged concrete
• For use with potable water

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/SimpsonStrongTie_SET3G10_Catalog.pdf
