Simpson Strong-Tie® STB2-1001000 SIM STB2-1001000

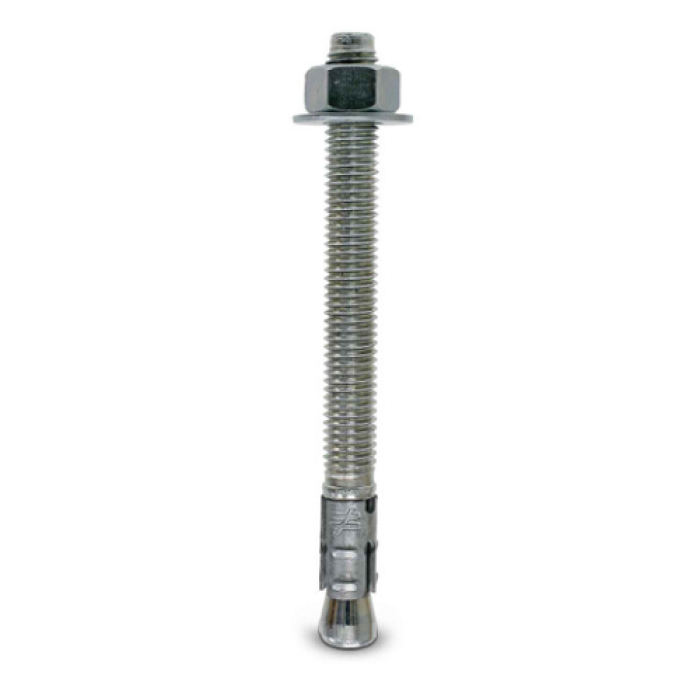

Simpson Strong-Tie Strong-Bolt STB2-1001000 Wedge Anchor 1 in Dia, 10 in L, 1 in Drill, Carbon Steel, Zinc-Pated (5/BX)
- Part#: SIM STB2-1001000
- Manufacturer: Simpson Strong-Tie
- MPN: STB2-1001000
- Brand Name: Simpson Strong-Tie®
-
Availability:
- Branch Availability
- Package Qty: 5
-
Price:
Code listed for cracked and uncracked concrete and masonry applications, the Strong-Bolt® 2 wedge-type expansion anchor is an optimal choice for high performance even in seismic and high wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location, this feature significantly increases the ability of Strong-Bolt® 2 to carry load if the hole expands.
Simpson Strong-Tie® Strong-Bolt® 2 Wedge Anchor, 1 in Diameter, 7 in Length, 1 in Drill, A Grade, 15020 lb. Shear Strength, Tension Strength: 36815 lb., 230 ft-lb Torque, Carbon Steel, Finish: Zinc-Plated
| Diameter | : | 1 in |
| Drill Size | : | 1 in |
| Finish | : | Zinc-Plated |
| Grade | : | A |
| Length | : | 10 in |
| Material | : | Carbon Steel |
| Shear Strength | : | 15020 lb |
| Thread Length | : | 3-1/2 in |
| Torque Rating | : | 230 ft-lb |
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3-1/4 in and lightweight concrete over steel deck thickness of 2-1/2 in and 3-1/4 in
- Standard (ANSI) fractional sizes fits standard fixtures and installs with common drill bit and tool sizes
