Simpson Strong-Tie® STB2-25134 SIM STB2-25134
Simpson Strong-Tie® Strong-Bolt® STB2-25134 Wedge Anchor, 1/4 in Dia, 1-3/4 in L, 1/4 in Drill, Carbon Steel, Zinc-Plated (100/BX)
- Part#: SIM STB2-25134
- Manufacturer: Simpson Strong-Tie
- MPN: STB2-25134
- Brand Name: Simpson Strong-Tie®
- UPC: 707392229001
-
Availability:
- Branch Availability
- Package Qty: 100
-
Price:

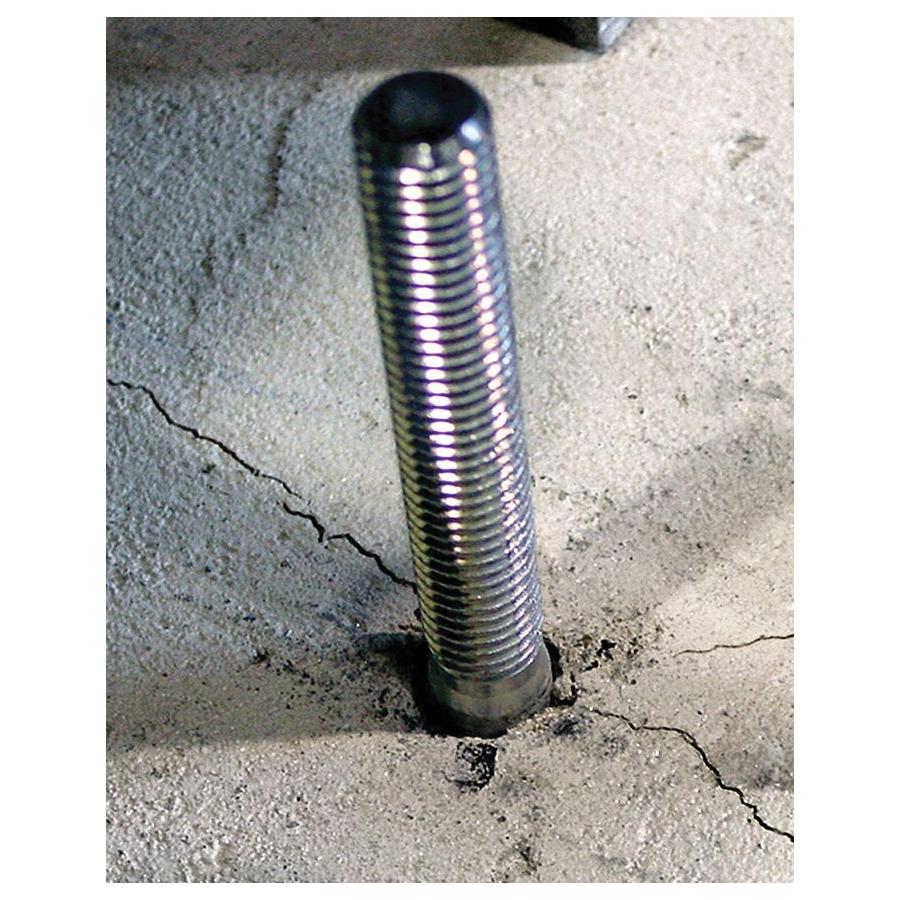

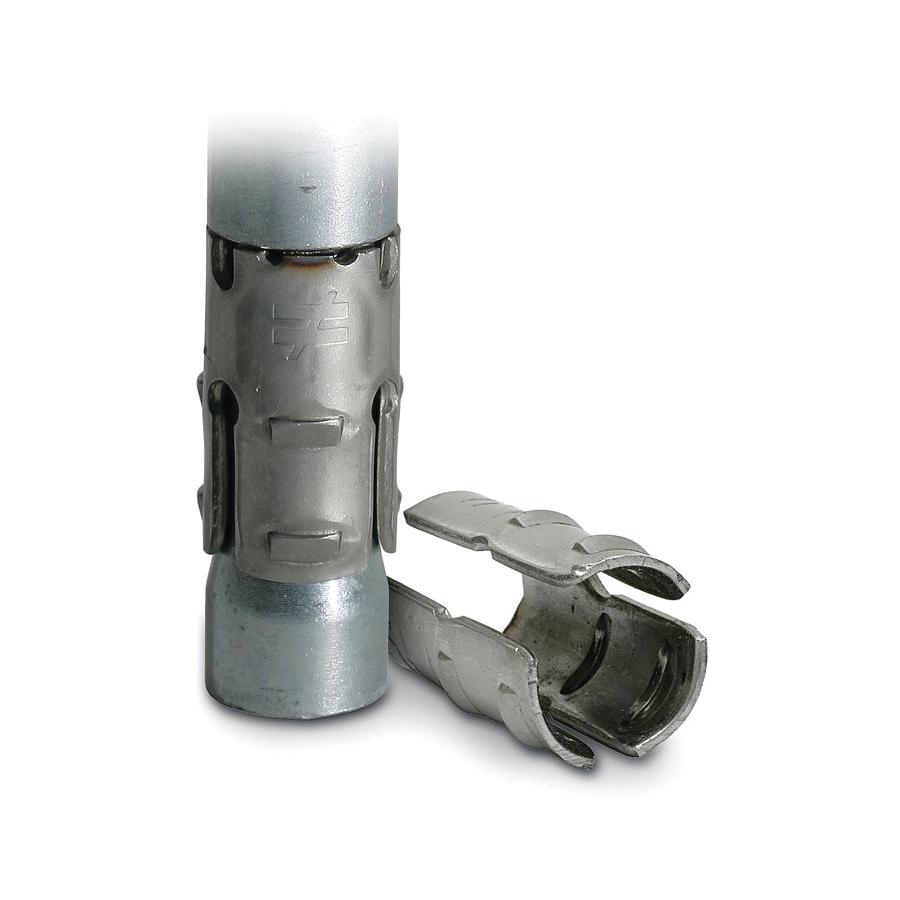

Code listed for cracked and uncracked concrete and masonry applications, the Strong-Bolt® 2 wedge-type expansion anchor is an optimal choice for high performance even in seismic and high wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location, this feature significantly increases the ability of Strong-Bolt® 2 to carry load if the hole expands.
Simpson Strong-Tie® Strong-Bolt® 2 Wedge Anchor, 1/4 in Diameter, 1-3/4 in Length, 1/4 in Drill, A Grade, 965 lb Shear Strength, Tension Strength: 2225 lb, 4 ft-lb Torque, Carbon Steel, Finish: Zinc-Plated
| Additional Information | : | 15/16 in L Thread |
| Diameter | : | 1/4 in |
| Drill Size | : | 1/4 in |
| Finish | : | Zinc-Plated |
| Grade | : | A |
| Length | : | 1-3/4 in |
| Material | : | Carbon Steel |
| Shear Strength | : | 965 lb |
| Tension Strength | : | 2225 lb |
| Thread Length | : | 15-16 in |
| Torque Rating | : | 4 ft-lb |
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications

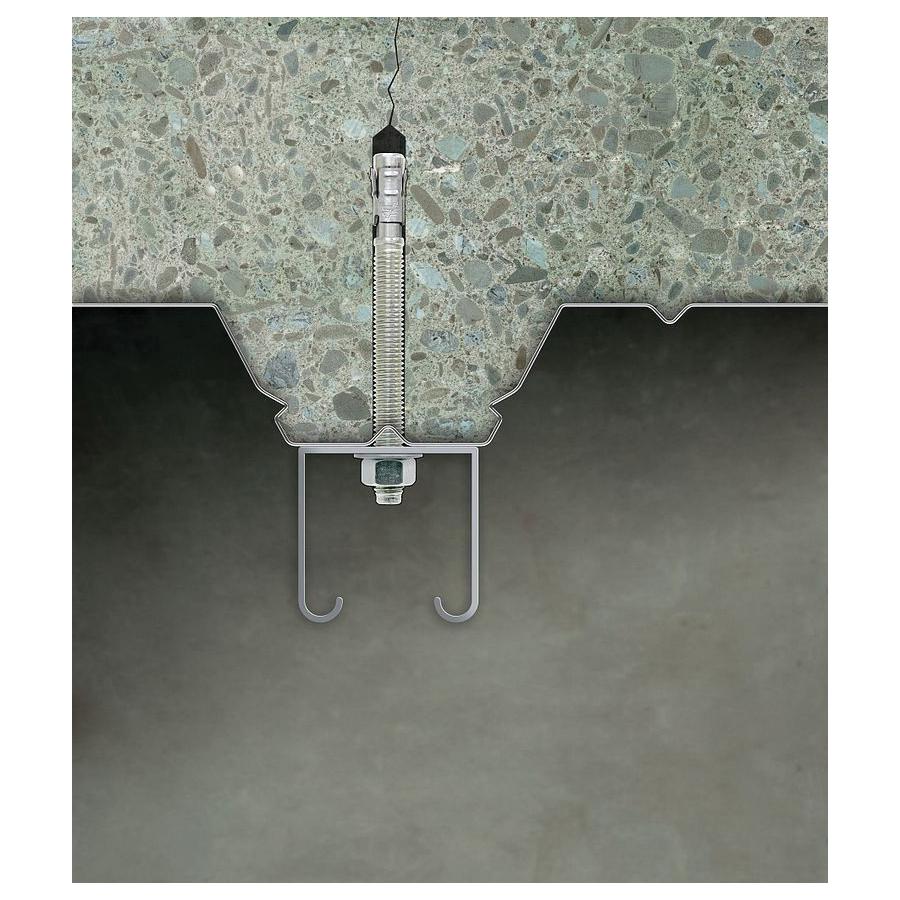

- Qualified for minimum concrete thickness of 3-1/4 in and lightweight concrete over steel deck thickness of 2-1/2 in and 3-1/4 in
- Standard (ANSI) fractional sizes fits standard fixtures and installs with common drill bit and tool sizes
