Simpson Strong-Tie® STB2-251344SS SIM STB2-251344SS

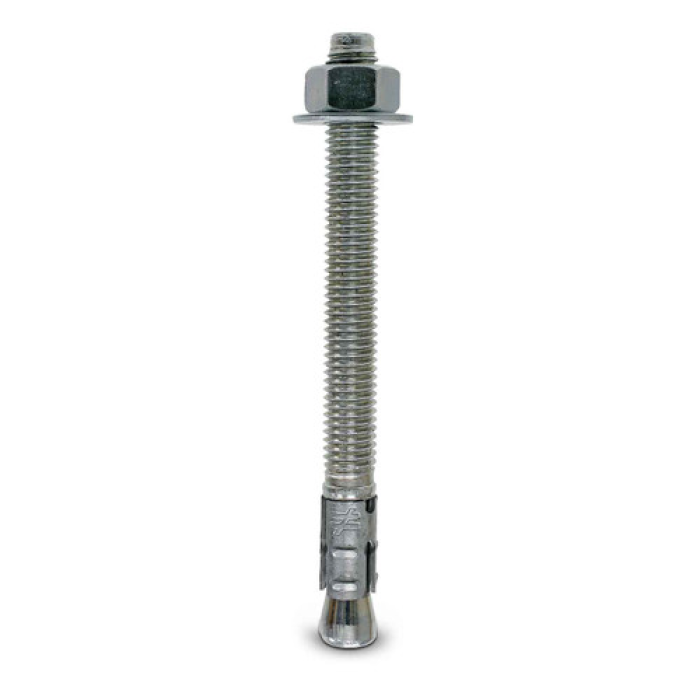

Simpson Strong-Tie® Strong-Bolt® STB2-251344SS, 304 Stainless Steel Wedge Anchor, 1/4 in Dia, 1-3/4 in L, 1/4 in Drill, Stainless Steel, Plain (100/BX)
- Part#: SIM STB2-251344SS
- Manufacturer: Simpson Strong-Tie
- MPN: STB2-251344SS
- Brand Name: Simpson Strong-Tie®
-
Availability:
- Branch Availability
- Package Qty: 100
-
Price:
Code listed for cracked and uncracked concrete, and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.
| Diameter | : | 1/4 in |
| Drill Size | : | 1/4 in |
| Finish | : | Stainless Steel |
| Grade | : | 304 Stainless Steel |
| Length | : | 1-3/4 in |
| Material | : | 304 Stainless Steel |
| Shear Strength | : | 1605 lb |
| Thread Length | : | 15/16 in |
| Torque Rating | : | 230 ft-lb |
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3 1/4", and lightweight concrete-over-steel deck thickness of 2 1/2" and 3 1/4"
- Standard (ANSI) fractional sizes: fits standard fixtures and installs with common drill bit and tool sizes
- Tested per ACI355.2 and AC193
