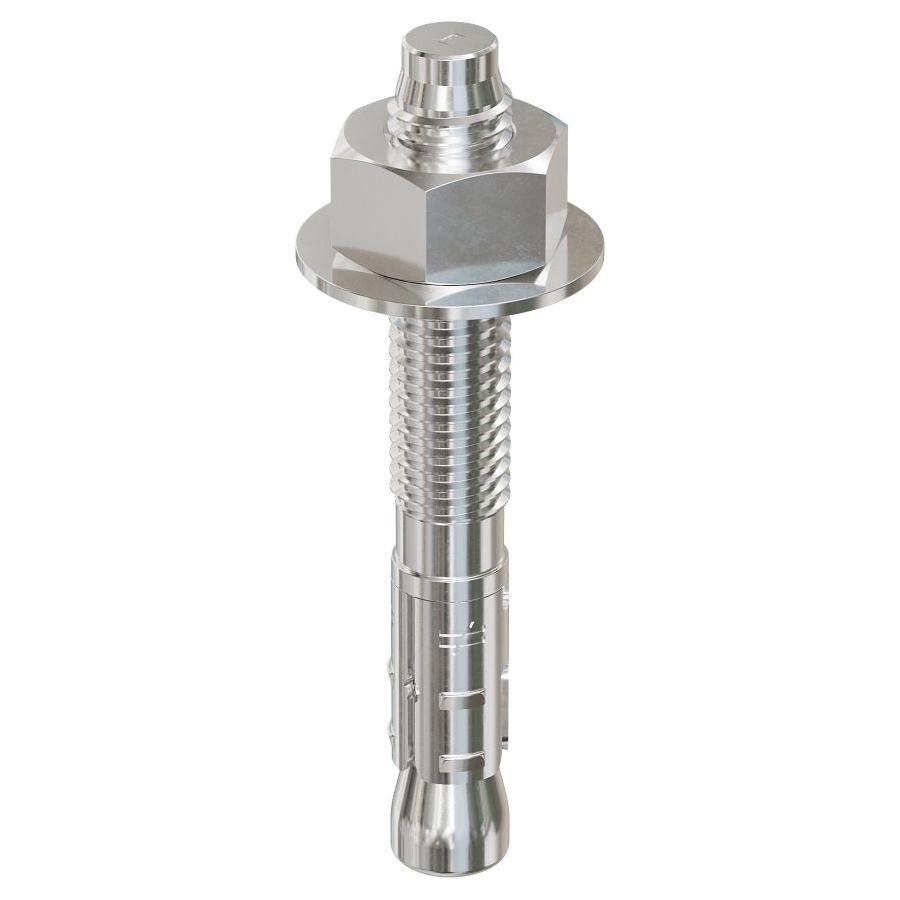

Simpson Strong-Tie® STB2-503344SS SIM STB2-503344SS
STB2-503344SS Strong-Bolt® Wedge Anchor, 1/2" Diameter x 3-3/4" Long, 1/2" Drill, 304 Stainless Steel (25/BX)
- Part#: SIM STB2-503344SS
- Manufacturer: Simpson Strong-Tie
- MPN: STB2-503344SS
- Brand Name: Simpson Strong-Tie®
- UPC: 707392499855
-
Availability:
- Branch Availability
- Package Qty: 0
-
Price:
Code listed for cracked and uncracked concrete and masonry applications, the Strong-Bolt® 2 wedge-type expansion anchor is an optimal choice for high performance even in seismic and high wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location, this feature significantly increases the ability of Strong-Bolt® 2 to carry load if the hole expands. The Strong-Bolt® 2 stainless steel wedge anchor offers long-lasting corrosion resistance for a wide variety of service environments.
Simpson Strong-Tie® Strong-Bolt® 2 Wedge Anchor, 1/2 in Diameter, 3-3/4 in Length, 1/2 in Drill, 7245 lb Shear Strength, Tension Strength: 12075 lb, 65 ft-lb Torque, 304 Stainless Steel
| Diameter | : | 1/2" |
| Drill Size | : | 1/2" |
| Finish | : | Stainless Steel |
| Grade | : | 304 Stainless Steel |
| Length | : | 3-3/4" |
| Material | : | 304 Stainless Steel |
| Shear Strength | : | 7245 lb |
| Thread Length | : | 2-1/16" |
| Torque Rating | : | 65 ft-lb |
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3-1/4 in and lightweight concrete over steel deck
- Standard (ANSI) fractional sizes fits standard fixtures and installs with common drill bit and tool sizes
