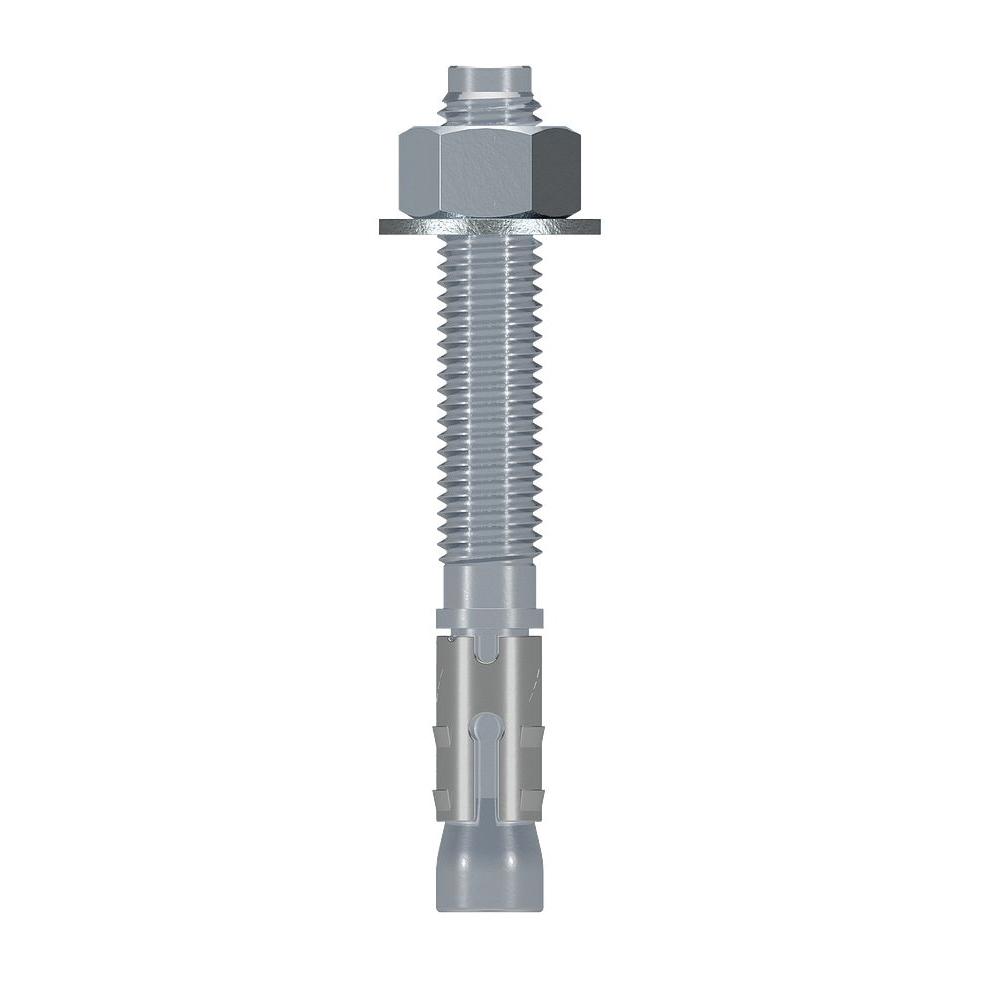

Simpson Strong-Tie® STB2-62500 SIM STB2-62500
STB2-62500 Strong-Bolt® Wedge Anchor, 5/8" Diameter x 5" Long, 5/8" Drill, Carbon Steel, (20/BX)
- Part#: SIM STB2-62500
- Manufacturer: Simpson Strong-Tie
- MPN: STB2-62500
- Brand Name: Simpson Strong-Tie®
- UPC: 707392825401
-
Availability:
- Branch Availability
- Package Qty: 0
-
Price:
Code listed for cracked and uncracked concrete and masonry applications, the Strong-Bolt® 2 wedge-type expansion anchor is an optimal choice for high performance even in seismic and high wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location, this feature significantly increases the ability of Strong-Bolt® 2 to carry load if the hole expands.
Simpson Strong-Tie® Strong-Bolt® 2 Wedge Anchor, 5/8 in Diameter, 5 in Length, 5/8 in Drill, A Grade, 11035 lb Shear Strength, Tension Strength: 19070 lb, 90 ft-lb Torque, Carbon Steel, Finish: Zinc-Plated
| Diameter | : | 5/85/8" |
| Drill Size | : | 5/8" |
| Finish | : | Zinc-Plated |
| Grade | : | A |
| Length | : | 5" |
| Material | : | Carbon Steel |
| Shear Strength | : | 11035 lb |
| Thread Length | : | 2-15/16" |
| Torque Rating | : | 90 ft-lb |
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Qualified for minimum concrete thickness of 3-1/4 in and lightweight concrete over steel deck thickness of 2-1/2 in and 3-1/4 in
- Standard (ANSI) fractional sizes fits standard fixtures and installs with common drill bit and tool sizes
