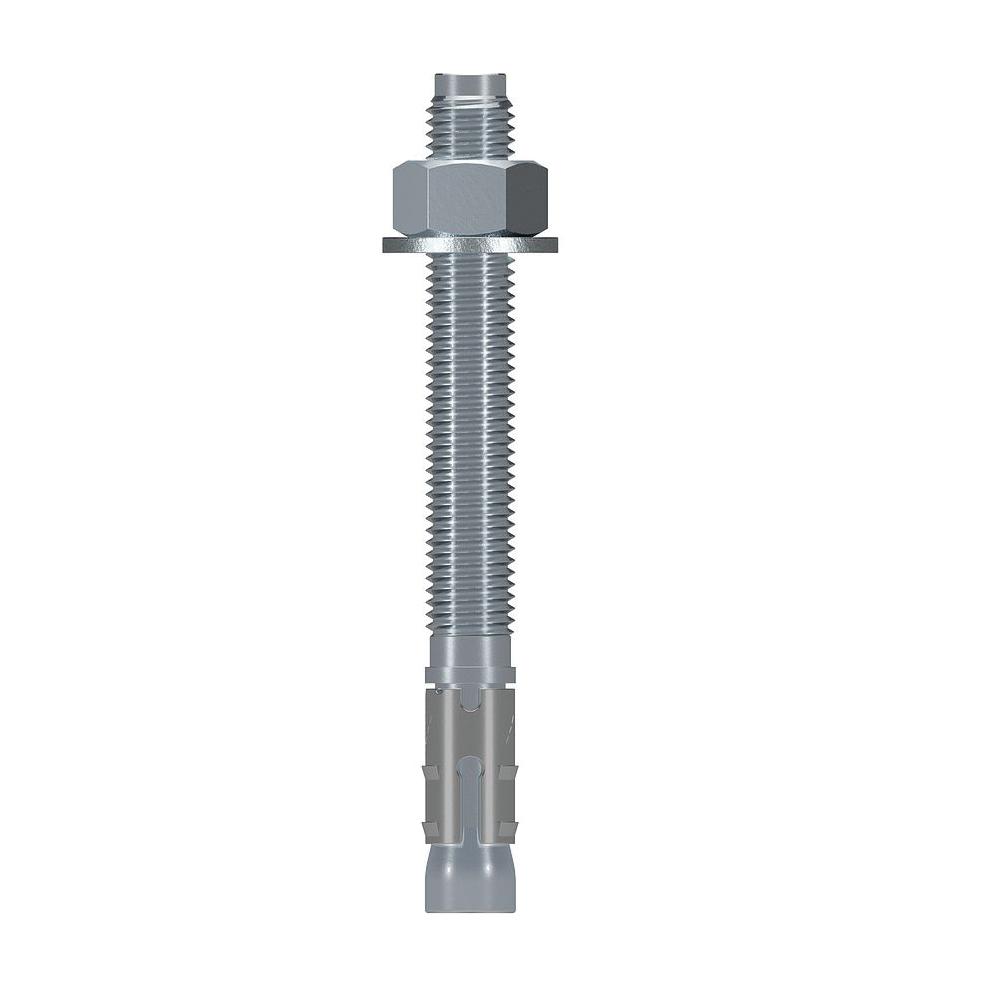

Simpson Strong-Tie® STB2-75700 SIM STB2-75700

Code listed for cracked and uncracked concrete and masonry applications, the Strong-Bolt® 2 wedge-type expansion anchor is an optimal choice for high performance even in seismic and high wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location, this feature significantly increases the ability of Strong-Bolt® 2 to carry load if the hole expands.

Simpson Strong-Tie® Strong-Bolt® 2 Wedge Anchor, 3/4 in Diameter, 7 in Length, 3/4 in Drill, A Grade, 14480 lb Shear Strength, Tension Strength: 29700 lb, 150 ft-lb Torque, Carbon Steel, Finish: Zinc-Plated

• Chamfered top designed to prevent mushrooming during installation
• Qualified for static and seismic loading conditions (seismic design categories A through F)
• Suitable for horizontal, vertical and overhead applications
• Qualified for minimum concrete thickness of 3-1/4 in and lightweight concrete over steel deck thickness of 2-1/2 in and 3-1/4 in
• Standard (ANSI) fractional sizes fits standard fixtures and installs with common drill bit and tool sizes

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Simpson_Strong_Tie_STB2_1001000_Catalog.pdf
