Simpson Strong-Tie® THD501500H SIM THD501500H
  1. pin-int

Simpson Strong-Tie® THD501500H SIM THD501500H

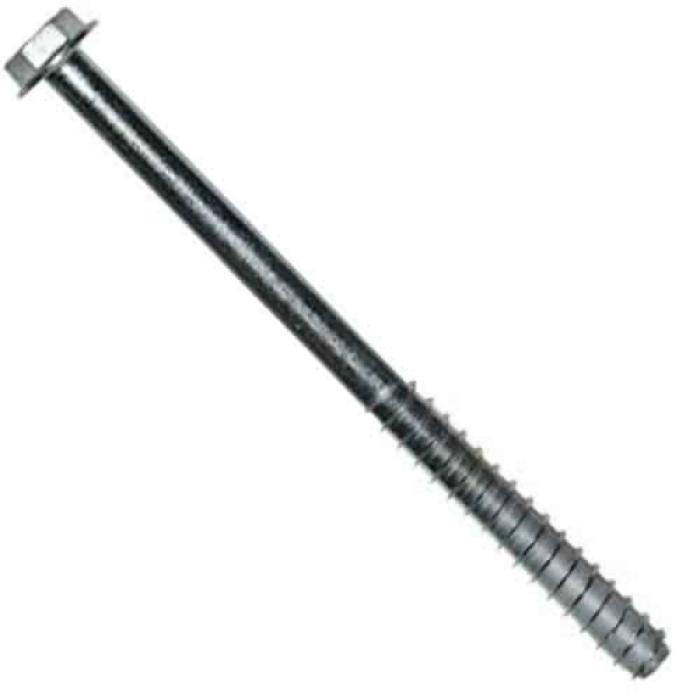

THD501500HTiten® HD Series Heavy-Duty Screw Anchor, 1/2" Diameter x 15" Long. Carbon Steel

  • Part#: SIM THD501500H
  • Manufacturer: Simpson Strong-Tie
  • MPN: THD501500H
  • Brand Name: Simpson Strong-Tie®
  • Availability: loading
  • Package Qty: 0

Simpson Strong-Tie® Heavy-Duty Screw Anchor, Titen HD® Series, 15 in Length, 3-1/4 to 4 in Minimum Embedment, 1/2 in Drill, 5-1/2 in Thread Length, Hex Washer Head, 110000 psi Tensile Strength, 5/8 to 11/16 in Fixture Thickness, Carbon Steel, Finish: Zinc-Plated.

Diameter      :      1/2"
Finish      :      Zinc-Plated
Fixture Thickness      :      5/8" to 11/16"
Head Type      :      Hex Washer
Length      :      15"
Material      :      Carbon Steel
Minimum Embedment      :      15-1/2"
Series      :      Titen® HD; Series
Thread Length      :      5-1/2"
  • Tested in accordance with ACI355.2, AC193 and AC106
  • Qualified for static, wind and seismic loading conditions
  • Thread design undercuts to efficiently transfer the load to the base material
  • Standard fractional sizes
  • Specialized heat-treating process creates tip hardness for better cutting without compromising ductility
  • No special drill bit required, designed to install using standard sized ANSI tolerance drill bits.
  • Hex washer head requires no separate washer, unless required by code and provides a clean installed appearance.
  • Removable, ideal for temporary anchoring (e.g. formwork, bracing) or application where fixtures may need to be moved.
  • Use in dry interior environments only.
