Simpson Strong-Tie® THDB25300H SIM THDB25300H
  1. pin-int

Simpson Strong-Tie® THDB25300H SIM THDB25300H

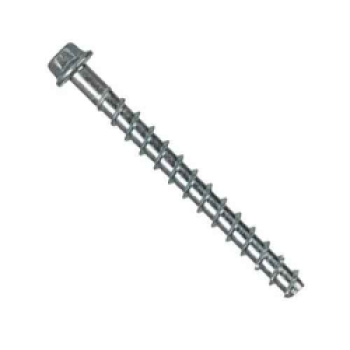

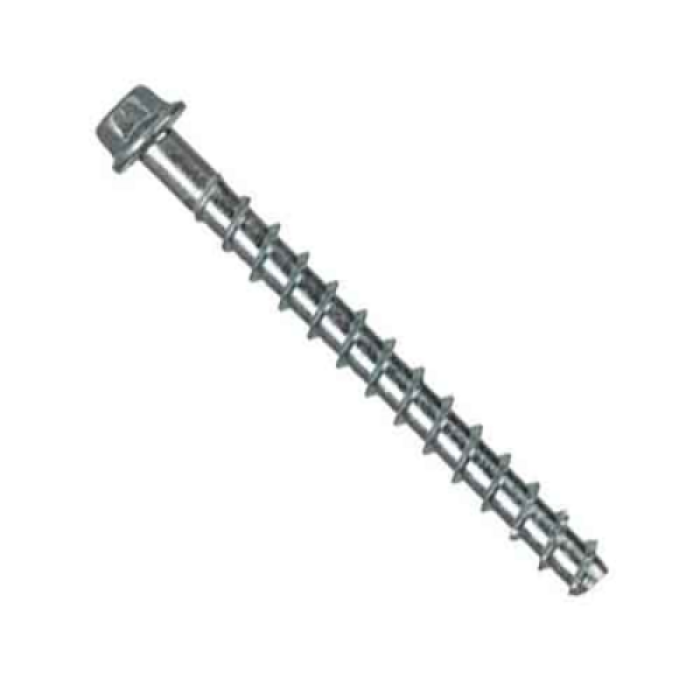

THDB25300H Titen® HD, Heavy-Duty Screw Anchor, 1/4" Diameter x 3" Long. Carbon Steel

  • Part#: SIM THDB25300H
  • Manufacturer: Simpson Strong-Tie
  • MPN: THDB25300H
  • Brand Name: Simpson Strong-Tie®
  • Availability: loading
  • Package Qty: 0

Simpson Strong-Tie® Heavy Duty Screw Anchor, Titen HD® Series, 3 in Length, 1-1/2 in Minimum Embedment, 1/4 in Drill, 2-5/8 in Thread Length, Hex Washer Head, 125000 psi Tensile Strength, 3/8 to 7/16 in Fixture Thickness, Carbon Steel, Zinc-Plated.

Diameter      :      1/4"
Finish      :      Zinc-Plated
Fixture Thickness      :      3/8" to 7/16"
Head Type      :      Hex
Length      :      3"
Material      :      Carbon Steel
Minimum Embedment      :      3-1/8"
Series      :      Titen® HD; Series
Thread Length      :      2-5/8"
  • Tested in accordance with ACI355.2, AC193, AC106
  • Qualified for static and seismic loading conditions
  • Thread design undercuts to efficiently transfer the load to the base material.
  • Standard fractional sizes.
  • Specialized heat-treating process creates tip hardness for better cutting without compromising ductility.
  • no special drill bit required, designed to install using standard sized ANSI tolerance drill bits.
  • Hex washer head requires no separate washer, unless required by code and provides a clean installed appearance.
  • Removable, ideal for temporary anchoring (e.g. formwork, bracing) or applications where fixtures may need to be moved.
  • Use in dry interior environment only.
