Simpson Strong-Tie® THDB25412CS SIM THDB25412CS
  1. pin-int

Simpson Strong-Tie® THDB25412CS SIM THDB25412CS

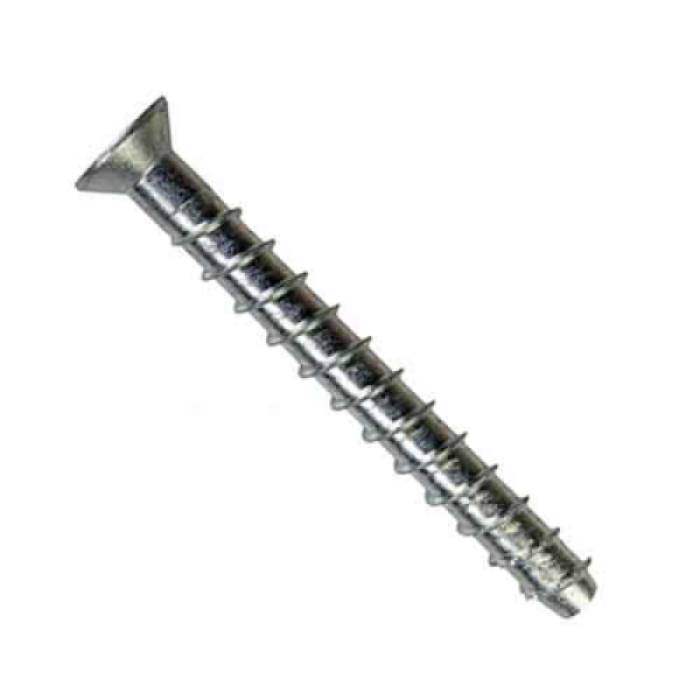

THDB25412CS Titen® HD Series Heavy Duty Screw Anchor, 1/4" Diameter x 4-1/2" Long. Carbon Steel (50/BX)

  • Part#: SIM THDB25412CS
  • Manufacturer: Simpson Strong-Tie
  • MPN: THDB25412CS
  • Brand Name: Simpson Strong-Tie®
  • Availability: loading
  • Package Qty: 50

Simpson Strong-Tie® Heavy Duty Screw Anchor, Titen® HD Series, 4-1/2 in Length, 1-1/2 in Minimum Embedment, 1/4 in Drill, 4-1/8 in Thread Length, Hex Washer Head, 125000 psi Tensile Strength, 3/8 to 7/16 in Fixture Thickness, Carbon Steel, Finish: Zinc-Plated.

Diameter      :      1/4"
Finish      :      Zinc-Plated
Fixture Thickness      :      3/8" to 7/16"
Head Type      :      Countersunk
Length      :      4-1/2"
Material      :      Carbon Steel
Minimum Embedment      :      4-7/8"
Series      :      Titen® HD; Series
Thread Length      :      4-1/8"
  • Qualified for static and seismic loading conditions.
  • Standard fractional sizes, hole same size as anchor size.
  • No special drill bit required, designed to install using standard-sized ANSI tolerance drill bits.
  • Removable, ideal for temporary anchoring or applications where fixtures may need to be moved.
  • Countersunk head allows for flush-mount applications that are not possible with a hex head.
  • Serrated teeth on the tip of the Titen® HD screw anchor facilitate cutting and reduce installation torque.
  • 1/8 in minimum hole depth overdrill required.
  • Zinc-Plated
