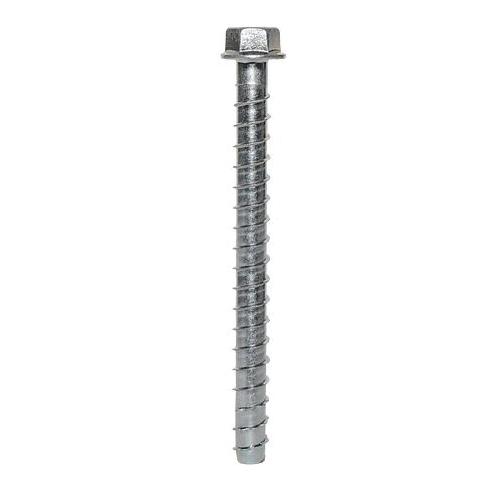

Simpson Strong-Tie® THDB62600H SIM THDB62600H

A high-strength screw anchor for use in cracked and uncracked concrete, as well as uncracked masonry. The Titen HD offers low installation torque and outstanding performance. Designed for use in dry, interior, non-corrosive environments or temporary outdoor applications. The stainless steel Titen HD is the optimal choice for applications in corrosive or extreme environments such as salt water or when chemical or corrosive solutions are present. See stainless steel Titen HD for more information.

Simpson Strong-Tie® Heavy-Duty Screw Anchor, Titen HD® Series, 5/8 in Diameter, 6 in Length, 4 in Minimum Embedment, 5/8 in Drill, 5-1/2 in Thread Length, Hex Head, 110000 psi Tensile Strength, 3/4 to 13/16 in Fixture Thickness, Carbon Steel, Finish: Zinc-Plated, Additional Information: 15/16 in Wrench Size

• Qualified for static, wind and seismic loading conditions
• Thread design undercuts to efficiently transfer the load to the base material
• Specialized heat-treating process creates tip hardness for better cutting without compromising the ductility
• No special drill bit required, designed to install using standard-sized ANSI tolerance drill bits
• Hex washer head requires no separate washer, unless required by code and provides a clean installed appearance

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Simpson_Strong_Tie_THD62400H_Catalog.pdf
• Video Link https://youtu.be/MvY7J-Cbjp0
