Southwire® 14880023-6 SOU 14880023-6
  1. pin-int

Southwire® 14880023-6 SOU 14880023-6

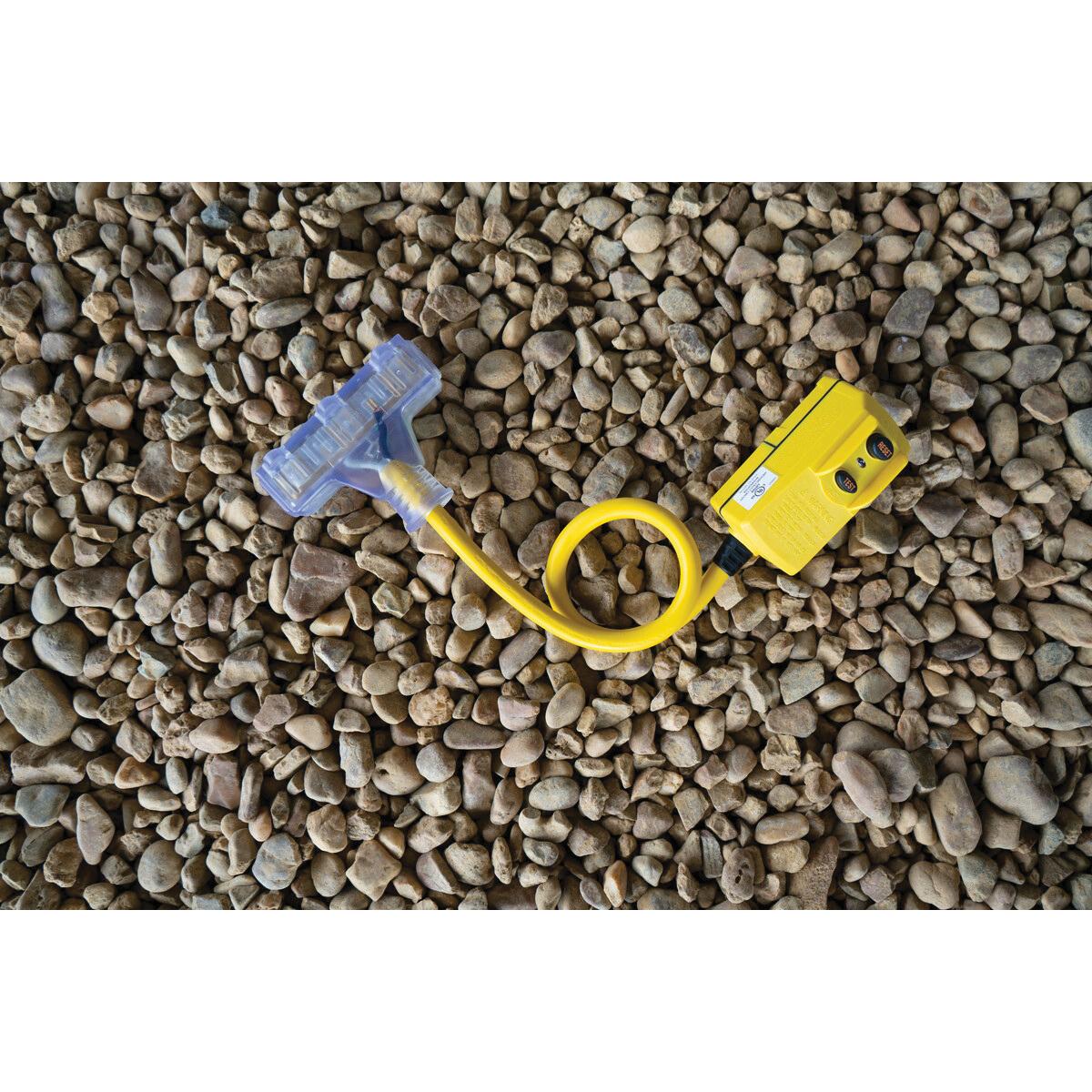

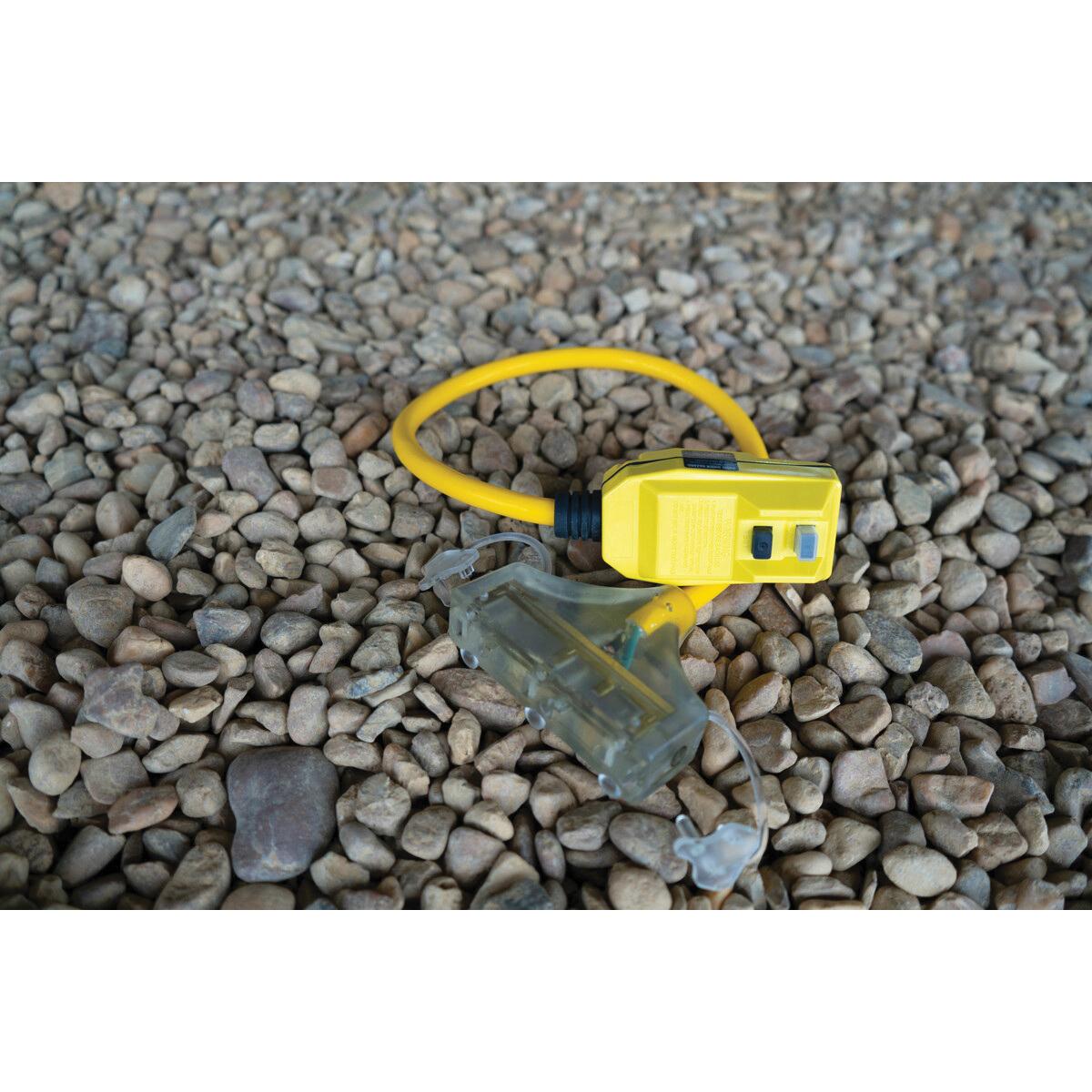

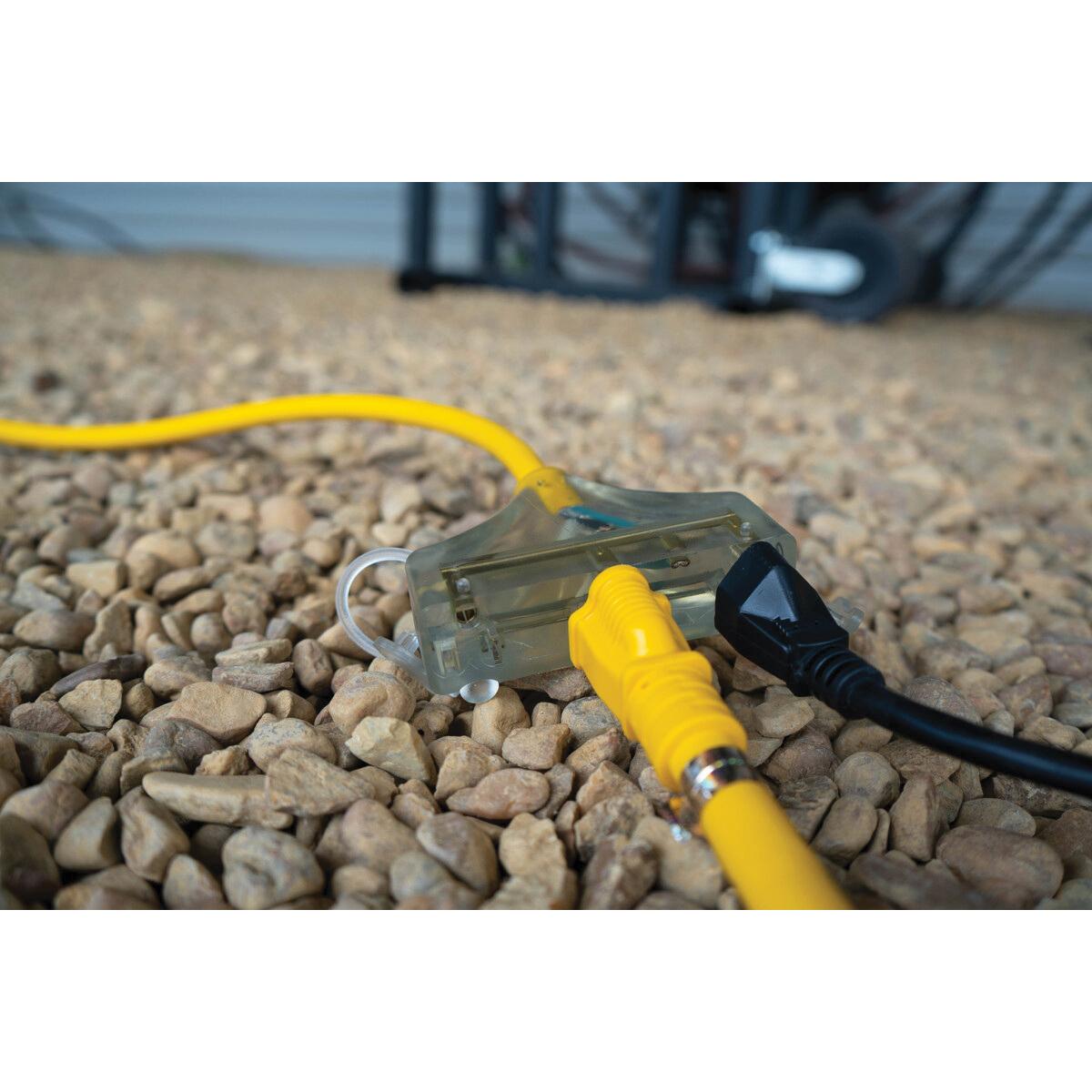

Southwire® SHOCK SHIELD™ 14880023-6 Right Angled GFCI Receptacle With 12/3 ga 2 ft Cord and Lit Tri-Source End, 15 A

  • Part#: SOU 14880023-6
  • Manufacturer: Southwire Company, LLC
  • MPN: 14880023-6
  • Brand Name: Southwire®
  • Availability: loading
  • Package Qty: 1

Heavy-duty molded T-head with three receptacles. The GFCI is an integral part of male plug. Provides protection for the extra heavy-duty cord and three attached tools. 12 ga cord is ideal for outdoor-rugged construction type environments.

Southwire® SHOCK SHIELD™ Right Angled GFCI Receptacle With 12/3 ga 2 ft Cord and Lit Tri-Source End, 15 A, 6 in Length, 2 in Width, 14 in Height

Amperage Rating      :      15 A
Conductor Size      :      12 gau
Conductor Type      :      SJTW-A
Cord Length      :      2'
Jacket Material      :      SJTW
Number of Conductors      :      3
Voltage Rating      :      15 amp
  • GFCI with 4 to 6 mA trip point
  • Less than 25 ms trip response time
  • Manual reset
  • Provides compliance with NEC 2008 Article 590.6 for temporary installations
  • pdf Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Southwire_14880023_6_Specification_Sheet.pdf
